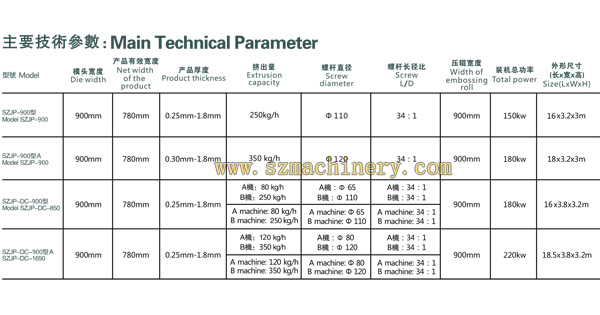

?Model:

SZJP-900

SZJP-900 A

SZJP-DC-900

SZJP-DC-900 A

?Die. Width:

900 mm

900 mm

900 mm

900 mm

?Net Width of The Product:

780 mm

780 mm

780 mm

780 mm

?Product Thickness:

0.25 - 1.8 mm

0.3 - 1.8 mm

0.25 – 1.8 mm

0.25 - 1.8 mm

? Extrusion Capacity:

250 kg/h?

350 kg/h

A machine: ?80 kg/h

B machine: 250 kg/h

A machine: 120 kg/h

B machine: 350 kg/h

? Screw Diameter:

110 mm

120 mm?

A machine: ?65 mm

B machine: 110 mm

A machine: ?80 mm

B machine: 120 mm

?Screw L/D Ratio:

34:1

34:1?

A machine: ?34:1

B machine: ?34:1

A machine: ?34:1

B machine: ?34:1

Width of Embossing Roll:

900 mm

900 mm

900 mm

900 mm

Total Power:

150 kw

180 kw

180 kw

220 kw

Size (LWH):

16×3.2×3 m

18×3.2×3 m

16×3.8×3.2 m

18.5×3.8×3.2 m
